Inverted light microscope Zeiss Axio Observer Z1m

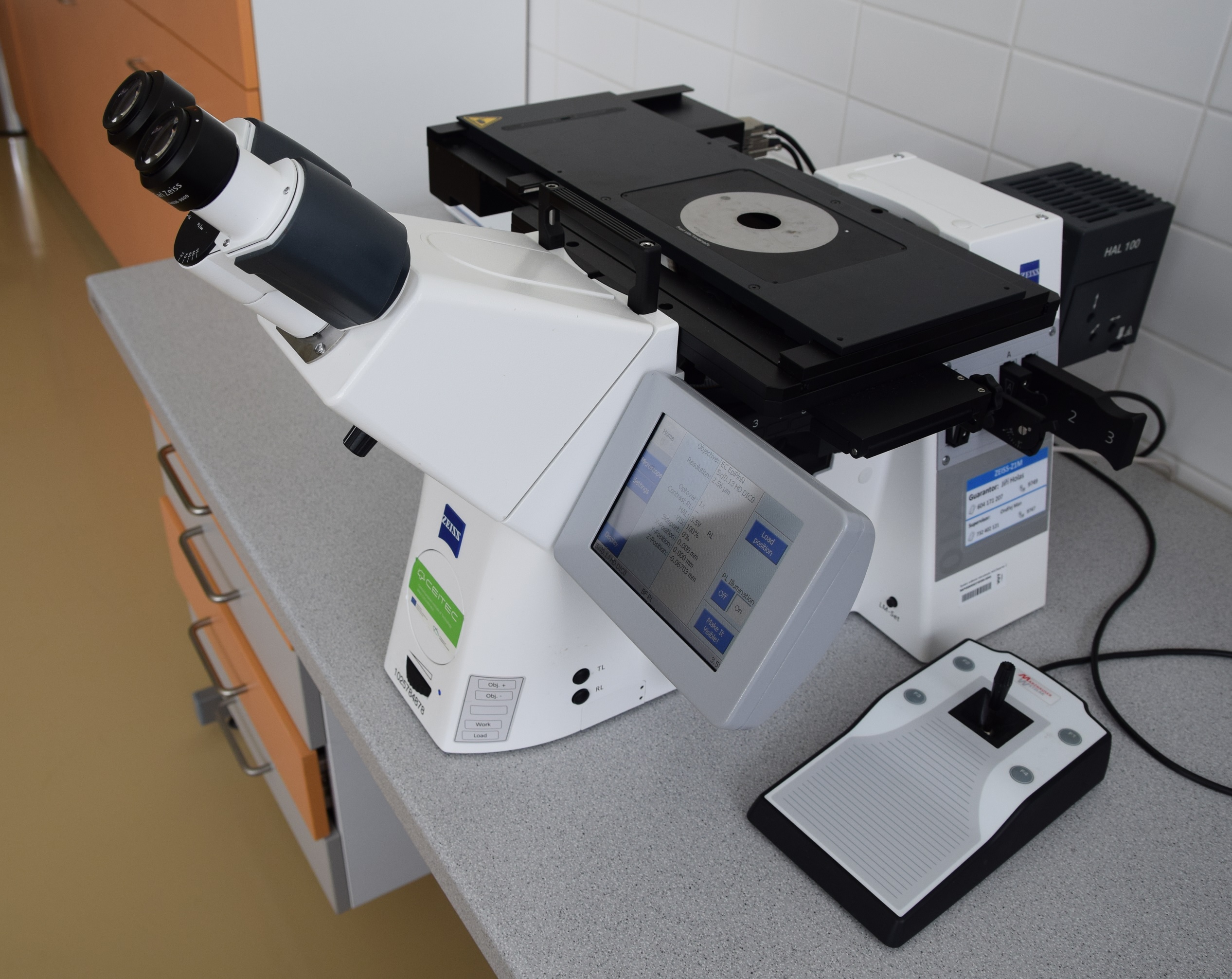

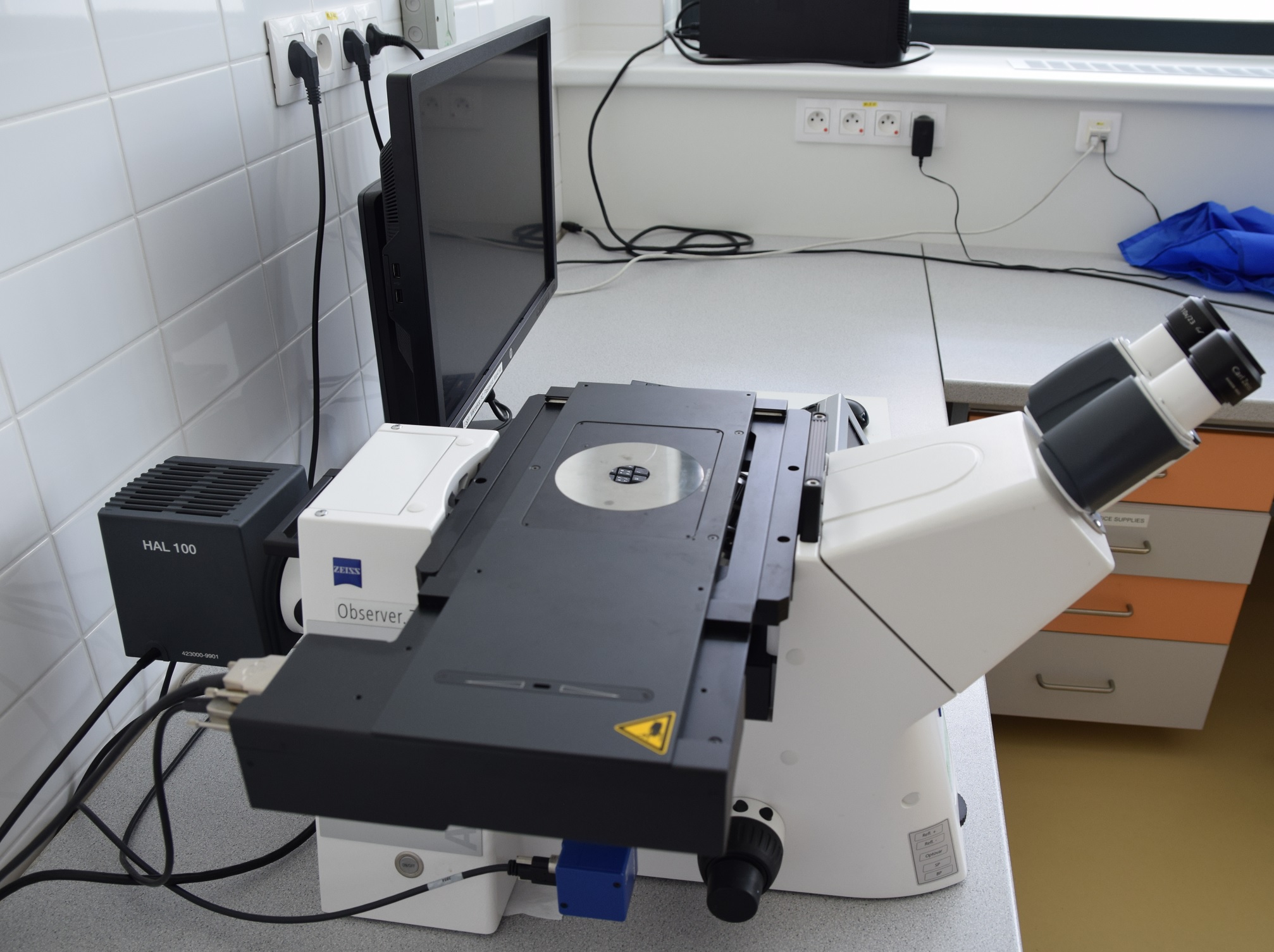

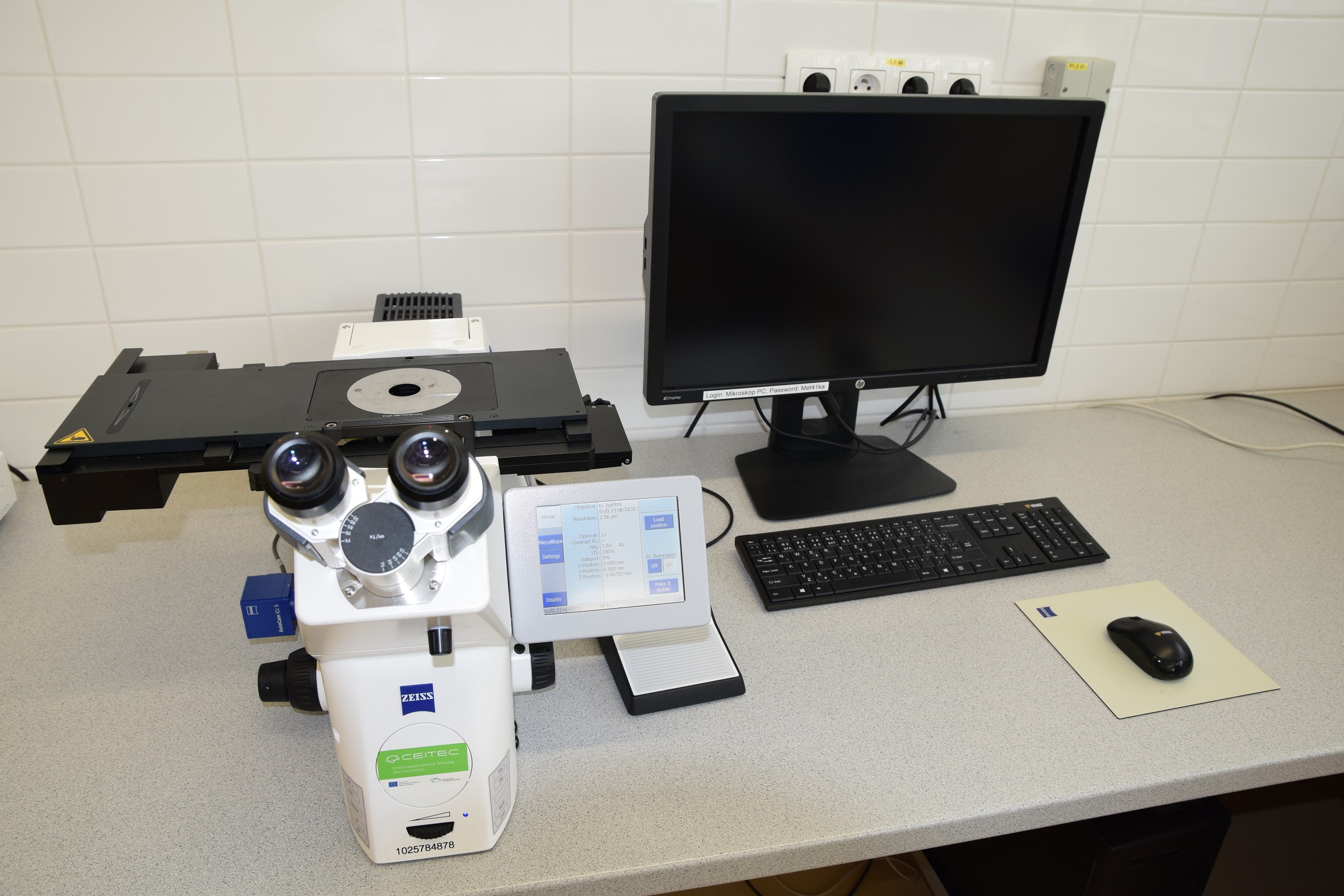

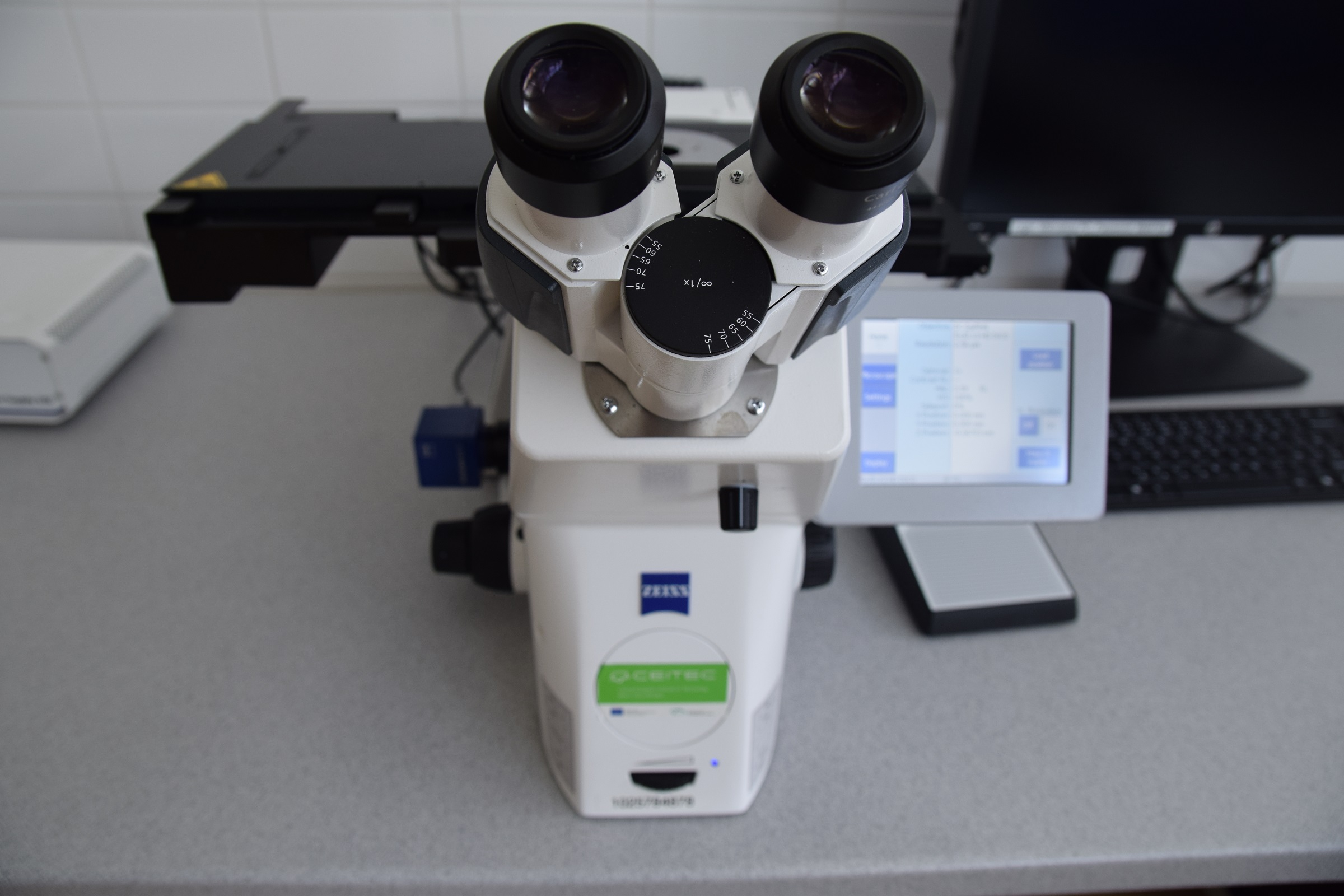

Inverted light microscope with motorized specimen stage, including motorized Z-drive. Stage control is carried out by joystick or by PC included. PC enables users to take snaps and perform image analysis using the software AxioVision. The microscope is equipped with 5 different objectives for resultant magnification from 50 x till 1000 x. The microscope offers all relevant methods in transmitted and reflected light: brightfield, darkfield, polarization, and DIC.
Specification
Eyepieces
| Magnification | 10 x |
|---|---|
| Field of vision diameter | 23 mm |
| Dioptric correction | yes |
Objectives
| Magnification | Numerical aperture |
|---|---|
| 5 x | 0.13 |
| 10 x | 0.25 |
| 20 x | 0.50 |
| 50 x | 0.80 |
| 100 x | 0.90 |
Available observation methods
| Brightfield |
| Darkfield |
| Polarized light |
| Circular differential interference contrast (C-DIC) |
Available stage inserts
| Round shaped | Ø 36 mm |
|---|---|
| Round shaped | Ø 28 mm |
| Drop shaped | Ø 23 mm |
Modules for image analysis
| Extended focus | for images with better depth of field consists of Z-stacks |
|---|---|
| Panorama | for composition of images in X-Y plane |
| Interactive measurement | for quick measurement and suitable choice of parametres |
| Automeasure | for automatic image analysis, based on predefined conditions |
| Online measurement | for measurement on live image without need of saving image |
| Asset archive | for saving images into users database, searching by different parameteres |
| MosaiX | for automatic creating of large format images using motorized stage |
| Z-stack | for scanning in Z axis with high precision |
| Autofocus | for automatic focusation of live image |
