LAURELL-SPIN COATER

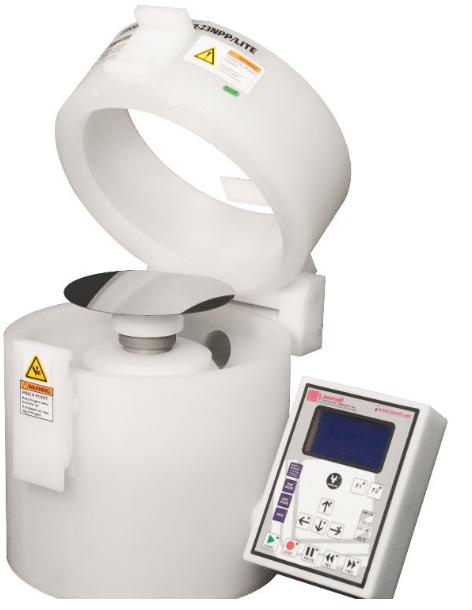

The Laurell WS-650-23 B spin coater is compact and packed with advanced features. This 650-series coater system will accommodate up to ø150mm wafers and 5" × 5" (127mm × 127mm) substrates, and features a maximum rotational speed of 12,000 RPM (based on a ø100mm silicon wafer).

Specification

Methods

manual spin coating

Sample size:	5x5 mm^2 to 150 mm / 6 inch (125x125 mm^2)
Maximum rotation speed:	12,000 RPM
Acceleration:	from 1 RPM increment

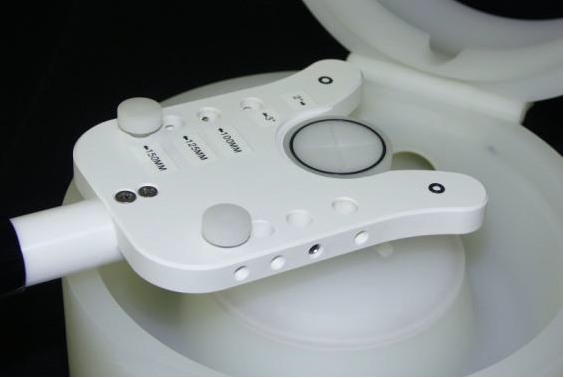

Instruments:	Reusable process chamber liner, made from Teflon Wafer Alignment Tool Chucks and Adapters for samples with different size

Gallery

Details

Type of access

Full-service (paid), Self-service

Research area

Devices
