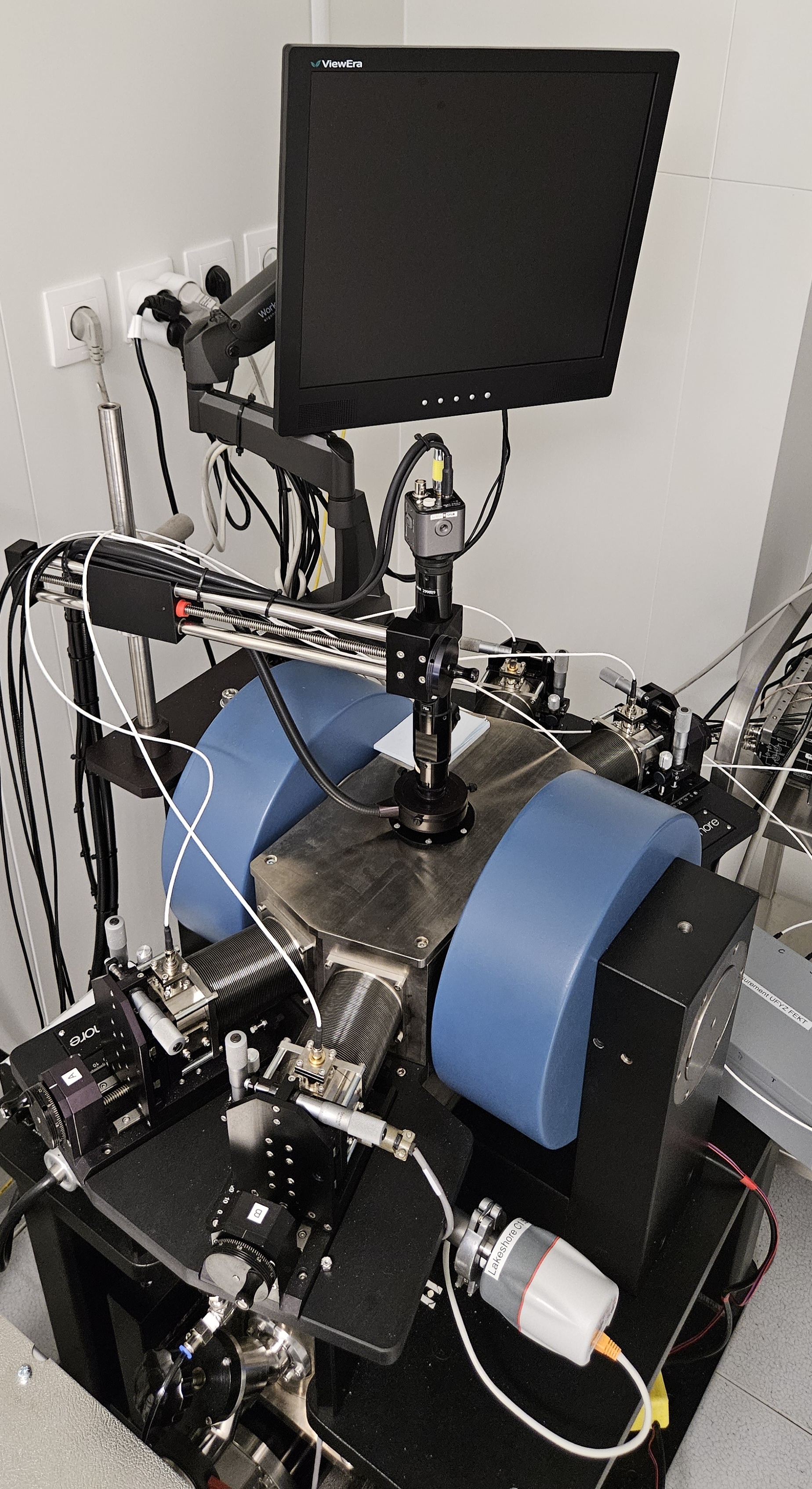

Low Temperature Electro-Magnetic Properties Measurement System LakeShore CRX-EM-HF
The Lake Shore Model CRX-EM-HF probe station combines the magnetic field capability of the Model EMPX-HF probe station with the cryogen free capability of the model CRX-4K. The CRX-EM-HF is for non-destructive testing of devices on full and partial wafers up to 25mm (1 in) in diameter. Based on a two-stage Gifford McMahon closed cycle refrigerator (CCR), the CRX-EM-HF provides up to a ±0.6 T magnetic field over a temperature range of <8 K to 400 K standard or <20 K to 500 K
Specification
Sample cooling assembly:
Type: 2-stage (sample + radiation shield)
Radiation shielding: A radiation shield with a top viewport surrounds the sample
Cooling source: 2-stage closed cycle refrigerator (CCR) with 1 W cooling power at 4.2 K
Temperature:
Standard range: 8 K to 400 K
Optional range 20 K to 500 K (PS-HTA-EM)
Vacuum: 10-5 Torr at base temperature
Cycle time: 4.5 h
Vacuum pump down: 0.5 h
Station cooldown: 2.25 h
Station warmup: 1.75 h
Vibration at sample: <1 µm
Sample:
Maximum sample size: 25.4 mm (1 in) diameter
Sample backside optical access: Not an option
Sample rotation: Optional 360-degree rotation stage (PS-360-CRX-EM)
Adds a 2 K gradient from the sample stage to the top of the rotation stage at the base temperature
Probing:
Maximum number of probes: 4
Cooled probe mounts: <20 K with sample at base temperature
DC/RF probes: Electrical isolation >100 GW for low leakage measurements
Microwave probes: Frequency range DC up to 67 GHz
Fiber optic probes: Available for electro-optical measurements
Magnetic field:
Field capability: ±0.6 T
Field orientation: Horizontal (parallel to the sample plane)
Gallery
Publications
Horký, M., 2025: Controlling the magnetic phase transition in spatially confined structures. PH.D. THESIS, p. 1 - 181 (RAITH, MIRA-EBL, LYRA, SUSS-MA8, DEKTAK, NANOCALC, MAGNETRON, EVAPORATOR, RIE-FLUORINE, WIRE-BONDER, MPS150, CRYOGENIC, LAKESHORE, VERSALAB, ICON-SPM, TITAN, HELIOS, VERIOS, RIGAKU3, RIGAKU9)
