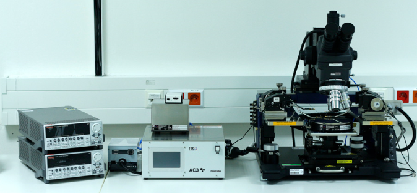

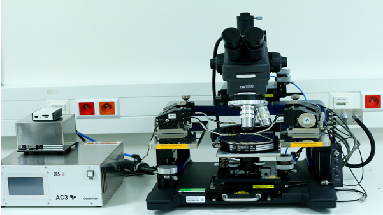

4-probe station Cascade Microtech MPS 150
Technologies for ensuring the dies to be properly interconnected and packaged with high precision, accuracy and reliability to eliminate damage of dies and enable easy manipulation. Supporting inspection technologies should provide the possibility of optical surface monitoring and inspection of interconnection and soldering process. Electrical characterization probe station is also planned, as well as temperature dependencies and working stress testing of fabricated dies.
Specification
- Preheat the chuck up to 300°C
- Pureline technology for premium signal integrity
- Attoguard technology for enhanced IV and CV measurements
- manual 3-axis precision stage up to 6-inch
- 200mm chuck with FemtoGuard technology providing:
- Ultra-low noise measurements and controlled leakage
- Low residual capacitance for repeatability
- Advanced measurement accuracy and speed
- 3 vacuum switch units
- Optical microscope mounted on a large area bridge with 8 x 6`` X-Y transport
- High-performance PCI video digitizer card enabling ‘’full-motion’’ live video
Main parameters
- Chuck Travel: stanïnless steel 155 mm x 155 mm (6 in. x 6 in.) X-Y stage travel.
- Planarity:
< +- 3 µm (Standard & RF chucks),over 150 mm (overall).
- Resolution:
5 µm (0.2 mils) on X-Y-Z axes.
- Theta Travel:
360° (coarse),+-8°(fine).
- Platen Contact/Separation:
200 µm
- Wafer Size: 25 mm (1 in.) to 150 mm (6 in.).
- Compatibility: Up to 12x DPP105 or 4x high-end positioners (e.g., DPP2xx/3xx/4xx/RPP210).
- Optical Stage:
150 x 100 mm
Four triax probe arms p
Humidity < 30%
Leakage (1 sigma) < 2 fA
Resistance (F-G) > 50 TΩ
Resistance (G-S) NA
Residual capacitance @ 3 pA Tx < 0.3 fF
Capacitance @ 300 pA (F-G) < 150 pF
Capacitance @ 300 pA (G-S) < 200 pF
Electrical performance
Breakdown voltage: ≥ 500V
Probe leakage: ≤1 fA
Chuck leakage: ≤15 fA
