Cryogenic-free VSM and ETO measurement system – Quantum Design, VersaLab

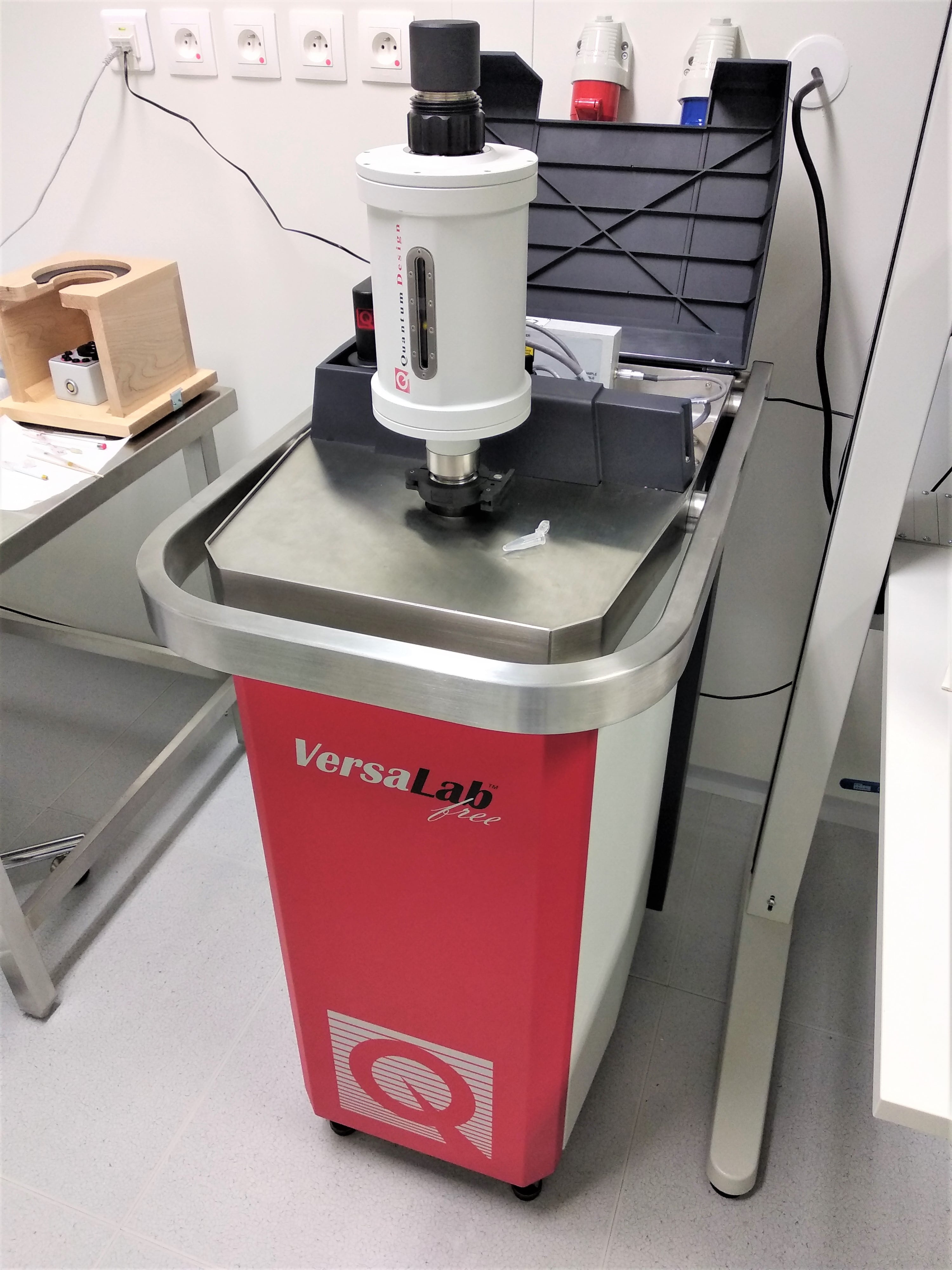

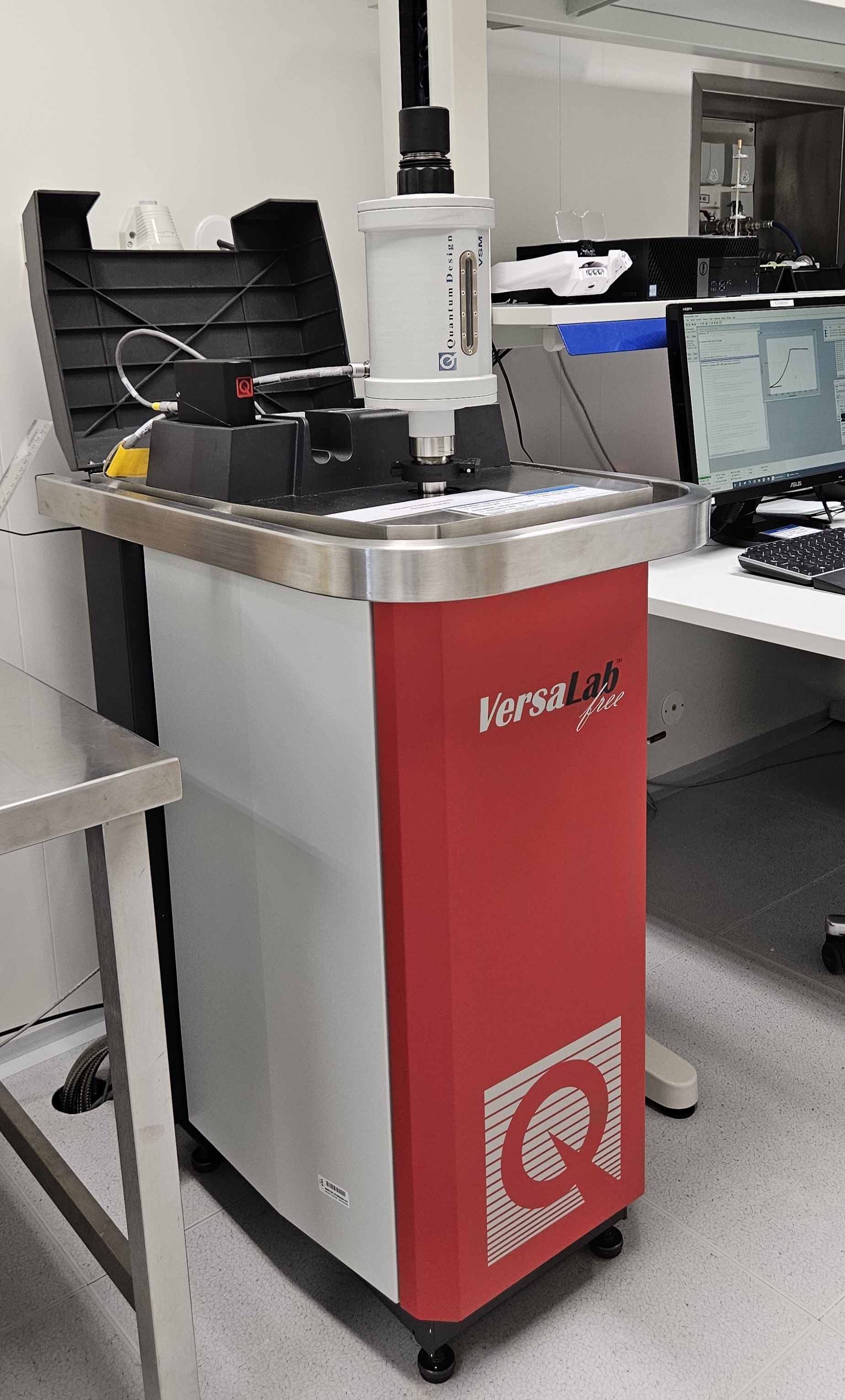

This cryogen-free physical property measurement system (VERSALAB) is suitable for magnetic and electrical characterization. It is a vibrating sample magnetometer (VSM) with an electrical transport option (ETO), capable to apply a magnetic field up to 3 T within a temperature range from 50 K up to 400 K. In addition, it has an oven option for the VSM to extend the temperature up to 1000 K.
Specification
VSM option
|
RMS sensitivity |
< 1 µemu with 1 sec averaging |
|

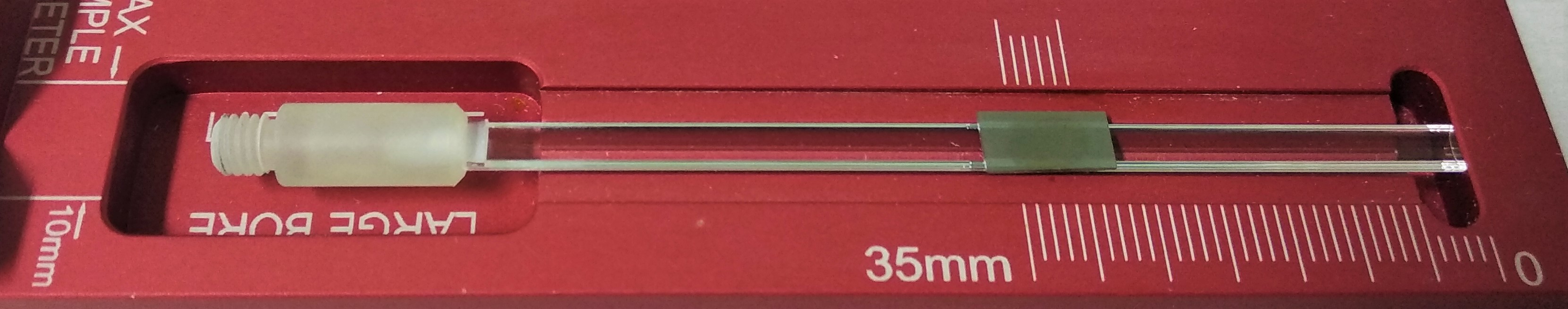

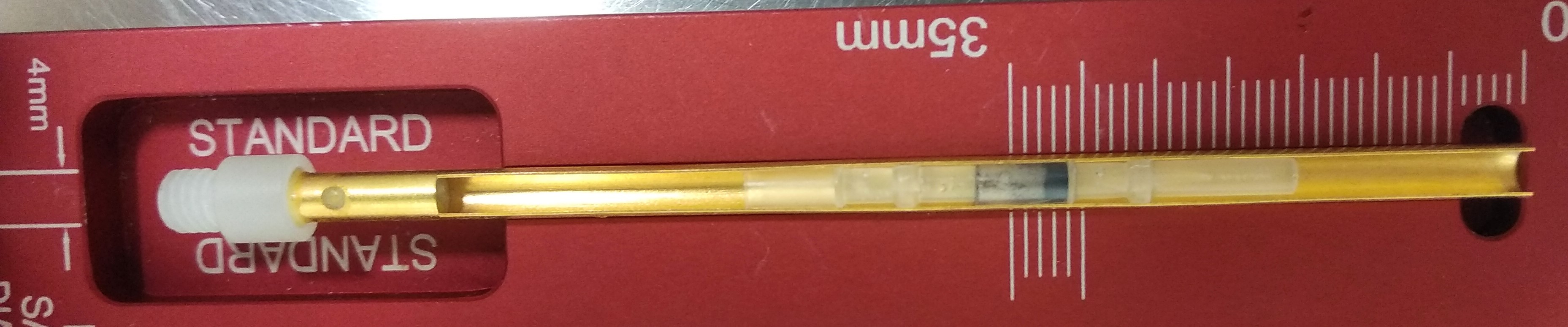

Sample size in XY plane |
4 mm for standard coilset and 7 mm for big coilset |
|
Position in Z axis |
35 mm from the bottom |
|
Temperature range |
50 K to 400 K, and up to 1000 K with the oven kit |
|
Magnetic field range |
3 T max. |

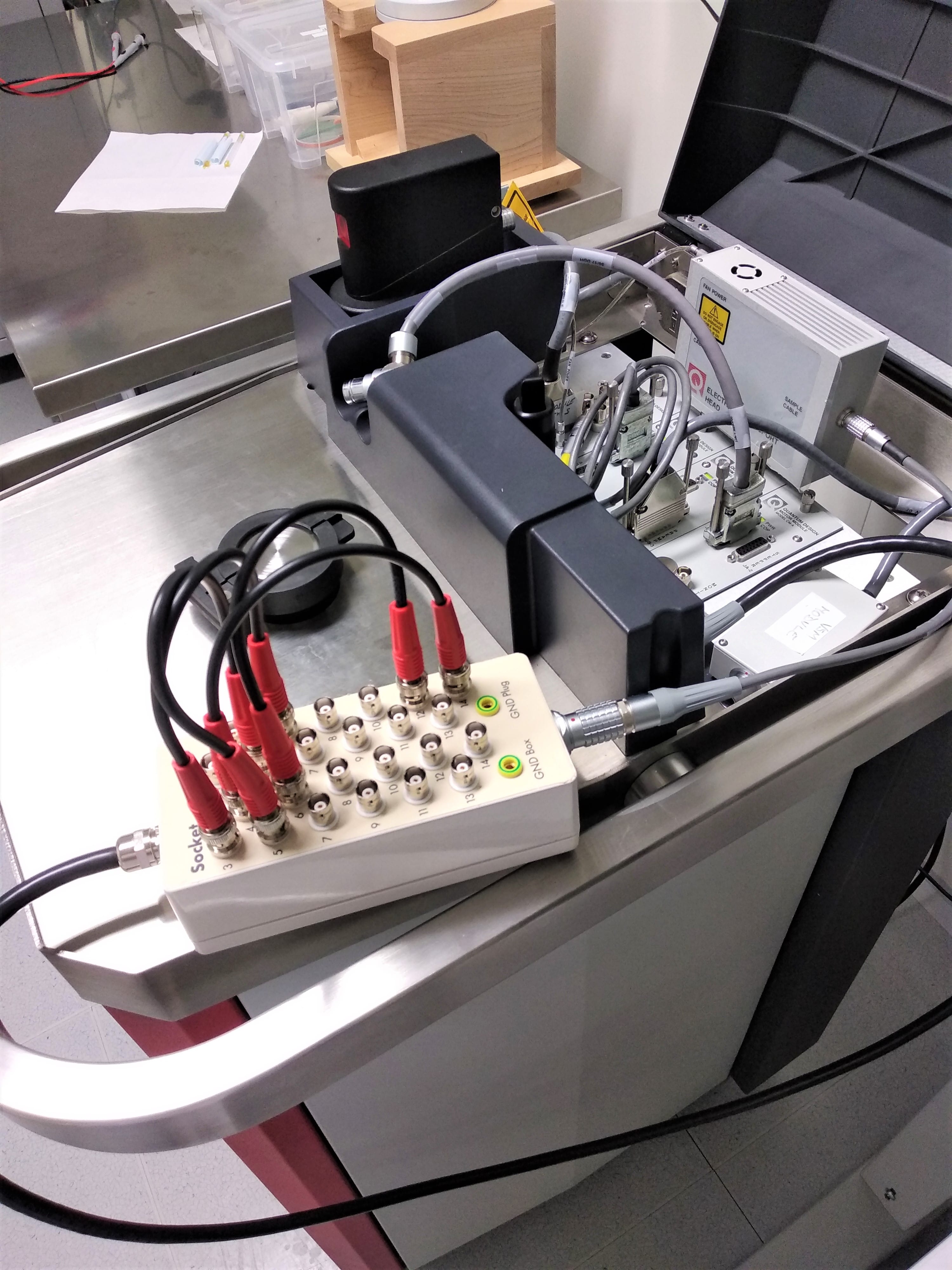

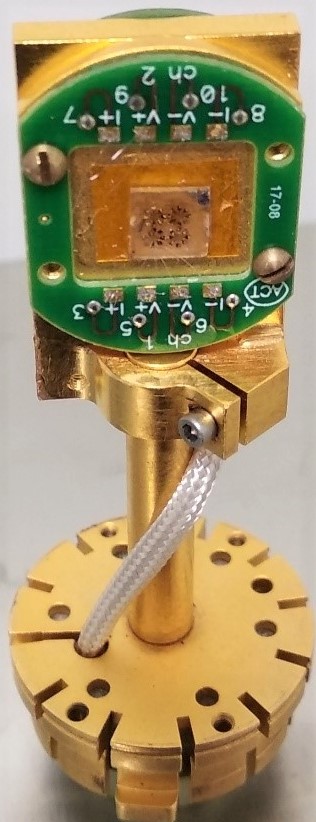

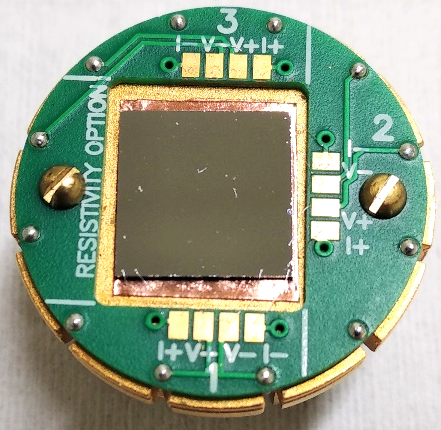

ETO option
|
Sensitivity |
1 nV at 100 mA |
|
Resolution |
10 nW at 100 mA |
|
DC and AC drive amplitude |
10 nA to 100 mA |
|
Resistance range |
10 µW to 5 GW |
|
Temperature range |
50 K to 400 K |
|
Magnetic field range |
3 T max. |
Gallery
Publications
Kiaba, M.; Caha, O.; Abadizaman, F.; Dubroka, A., 2022: Stabilization of the oxygen concentration in La0.3Sr0.7CoO3−δ thin films by 3 nm thin LaAlO3 capping layer. THIN SOLID FILMS 759, doi: 10.1016/j.tsf.2022.139438 (RIGAKU9, VERSALAB)
Velič, A., 2022: Optical study of laser-induced magnetic phase transitions. BACHELOR'S THESIS, p. 1 - 42 (MAGNETRON, VERSALAB, KERR-MICROSCOPE)
URSO, M.; USSIA, M.; NOVOTNÝ, F.; PUMERA, M., 2022: Trapping and detecting nanoplastics by MXene-derived oxide microrobots. NATURE COMMUNICATIONS 13 (1), p. 3573-1 - 14, doi: 10.1038/s41467-022-31161-2 (LEICACOAT-NANO, MIRA-STAN, RIGAKU9, KRATOS-XPS, VERSALAB)
MUNOZ MARTIN, J.; URSO, M.; PUMERA, M., 2022: Self-Propelled Multifunctional Microrobots Harboring Chiral Supramolecular Selectors for "Enantiorecogniton-on-the-Fly". ANGEWANDTE CHEMIE-INTERNATIONAL EDITION 61 (14), p. 1 - 7, doi: 10.1002/anie.202116090 (MIRA-STAN, VERSALAB)
HORKÝ, M.; ARREGI URIBEETXEBARRIA, J.; PATEL, S.; STAŇO, M.; MEDAPALLI, R.; CAHA, O.; VOJÁČEK, L.; HORÁK, M.; UHLÍŘ, V.; FULLERTON, E., 2022: Controlling the Metamagnetic Phase Transition in FeRh/MnRh Superlattices and Thin-Film Fe50-xMnxRh50 Alloys. ACS APPLIED MATERIALS & INTERFACES 14 (2), p. 3568 - 12, doi: 10.1021/acsami.1c22460 (VERSALAB, RIGAKU9, ICON-SPM, HELIOS, TITAN)
Hajduček, J., 2021: Imaging of metamagnetic thin films using TEM. MASTER'S THESIS, p. 1 - 78 (MAGNETRON, VERSALAB, MIRA-EBL, HELIOS, TITAN)
PRESSACCO, F.; SANGALLI, D.; UHLÍŘ, V.; KUTNYAKHOV, D.; ARREGI URIBEETXEBARRIA, J.; AGUSTSSON, S.; BRENNER, G.; REDLIN, H.; HEBER, M.; VASILYEV, D.; DEMSAR, J.; SCHÖNHENSE, G.; GATTI, M.; MARINI, A.; WURTH, W.; SIROTTI, F., 2021: Subpicosecond metamagnetic phase transition in FeRh driven by non-equilibrium electron dynamics. NATURE COMMUNICATIONS 12 (1), p. 5088-1 - 8, doi: 10.1038/s41467-021-25347-3 (MAGNETRON, RIGAKU9, VERSALAB)
TURČAN, I.; FLAJŠMAN, L.; WOJEWODA, O.; ROUČKA, V.; MAN, O.; URBÁNEK, M., 2021: Spin wave propagation in corrugated waveguides. APPLIED PHYSICS LETTERS 118 (9), p. 1 - 5, doi: 10.1063/5.0041138 (HELIOS, LYRA, ICON-SPM, RAITH, KERR-MICROSCOPE, VERSALAB, VNA-MPI, BRILLOUIN)
Hnilica, J., 2021: Deposition of low-damping metamagnetic thin films. BACHELOR'S THESIS, p. 1 - 57 (MAGNETRON, VERSALAB, VNA-MPI)
Zadorozhnii, O., 2021: Exchange bias in metamagnetic heterostructures. MASTER'S THESIS, p. 1 - 81 (MAGNETRON, VERSALAB, KERR-MICROSCOPE, RAITH, RIE-FLUORINE, LYRA, UHV-XPS)
GHAHFAROKHI, M.; ARREGI URIBEETXEBARRIA, J.; CASOLI, F.; HORKÝ, M.; CABASSI, R.; UHLÍŘ, V.; ALBERTINI, F., 2021: Microfabricated ferromagnetic-shape-memory Heuslers: The geometry and size effects. APPLIED MATERIALS TODAY 23, p. 101058-1 - 11, doi: 10.1016/j.apmt.2021.101058 (VERSALAB, RIGAKU9, KERR-MICROSCOPE, SUSS-MA8, RIE-FLUORINE, EVAPORATOR, WIRE-BONDER, VERIOS)
Vaňatka, M., 2021: Static and dynamic properties of nanostructured magnetic materials. PH.D. THESIS, p. 1 - 113 (VERSALAB, VNA-MPI, TITAN, BRILLOUIN, MIRA-EBL, RAITH, KERR-MICROSCOPE, MAGNETRON, EVAPORATOR, VERIOS, WIRE-BONDER, LYRA)
Motyčková, L., 2020: Magnetic properties of self-assembled FeRh nanomagnets. MASTER'S THESIS, p. 1 - 90 (MAGNETRON, VERSALAB, ICON-SPM, RIGAKU9, VERIOS, KERR-MICROSCOPE)
VON REPPERT, A.; WILLIG, L.; PUDELL, J.; ZEUSCHNER, S.; SELLGE, G.; GANSS, F.; HELLWIG, O.; ARREGI URIBEETXEBARRIA, J.; UHLÍŘ, V.; CRUT, A.; BARGHEER, M., 2020: Spin stress contribution to the lattice dynamics of FePt. SCIENCE ADVANCES 6 (28), p. 1 - 7, doi: 10.1126/sciadv.aba1142 (VERSALAB, RIGAKU9)
ARREGI URIBEETXEBARRIA, J.; CAHA, O.; UHLÍŘ, V., 2020: Evolution of strain across the magnetostructural phase transition in epitaxial FeRh films on different substrates. PHYSICAL REVIEW B 101 (17), p. 174413-1 - 14, doi: 10.1103/PhysRevB.101.174413 (MAGNETRON, VERSALAB, RIGAKU9)
UHLÍŘ, V.; PRESSACCO, F.; ARREGI URIBEETXEBARRIA, J.; PROCHÁZKA, P.; PRŮŠA, S.; POTOČEK, M.; ŠIKOLA, T.; ČECHAL, J.; BENDOUNAN, A.; SIROTTI, F., 2020: Single-layer graphene on epitaxial FeRh thin films. APPLIED SURFACE SCIENCE 514, p. 145923-1 - 7, doi: 10.1016/j.apsusc.2020.145923 (MAGNETRON, VERSALAB, RIGAKU9, UHV-LEEM, UHV-LEIS, UHV-SPM, UHV-XPS, SIMS)
Hajduček, J., 2019: Substrate-controlled nucleation of the magnetic phase transtition in nanostructures. BACHELOR'S THESIS, p. 1 - 46 (MAGNETRON, ICON-SPM, CRYOGENIC, MIRA-EBL, RIE-FLUORINE, EVAPORATOR, VERSALAB)
Jaskowiec, J., 2019: Spatial confinement effects in metamagnetic nanostructures. MASTER'S THESIS, p. 1 - 55 (MAGNETRON, MIRA-EBL, RAITH, ICON-SPM, CRYOGENIC, VERSALAB)
Vojáček, L., 2019: Magneto-optical investigation of spintronic materials. BACHELOR'S THESIS, p. 1 - 51 (MAGNETRON, VERSALAB)
