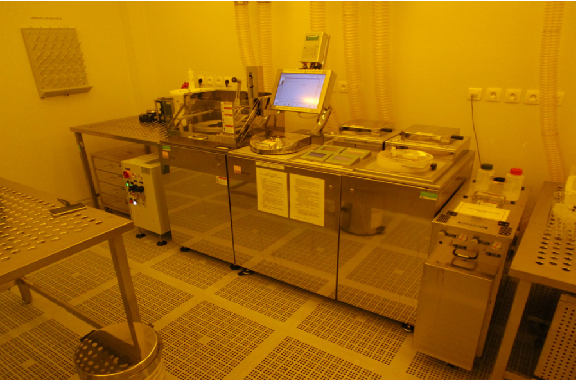

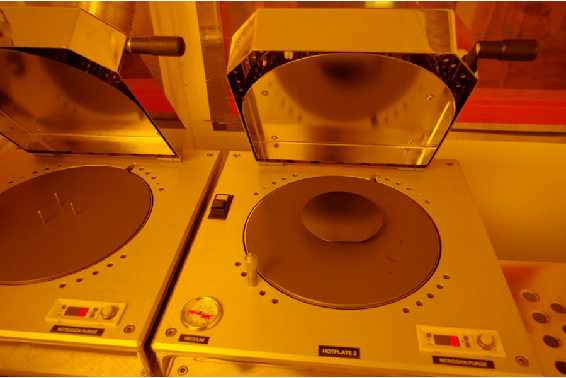

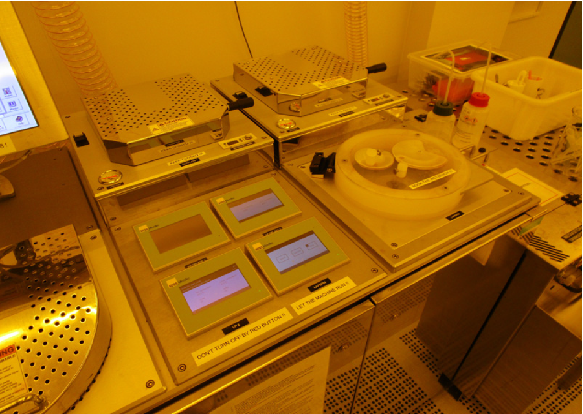

Resist coating and development system SÜSS MicroTec RCD8
Resist mask preparation for fabrication of nano and microstructures with ultimate dimensions below 50 nm. Includes resist spin coating facility, complete photolithography setup and electron beam lithography / shared by CEITEC users, open facilities
Specification
Methods
semi-automated spin coating and resist developmentGeneral
| Substrate size | 2” to 200 mm round, 2” to 150 mm square |
|---|---|
| Substrate Handling | manual, lift pins |
| User Interface | SUSS MMC Tool Control on Win 7, industrial PC, touch screen |
| Max. # of Recipes | more than 10 000 |
| Max. # of Process Steps | 50 |

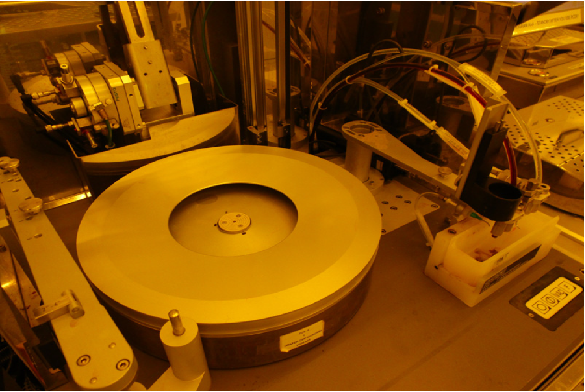

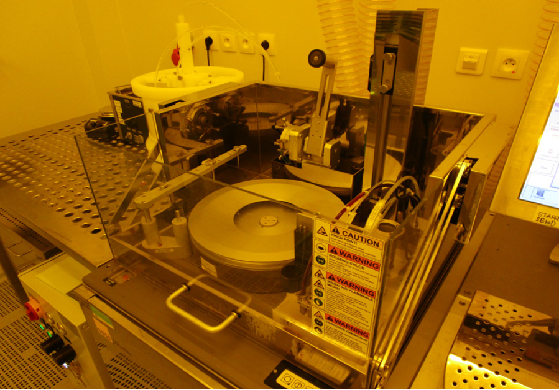

Module: Open Bowl Coater
| Spin Speed Max | 10 000 RPM |
|---|---|
| Spin Acceleration | 1 – 7000 RPM/s |
| Bowl Material | Ni-plated Al |
| Dispense arm | 1 resist line, 1 solvent line, motorized syringe pump |
Module: Gyrset Coater
| Spin Speed Max | 3 000 RPM |
|---|---|
| Spin Acceleration | 1 – 3000 RPM/s |
| Bowl Material | Ni-plated Al |

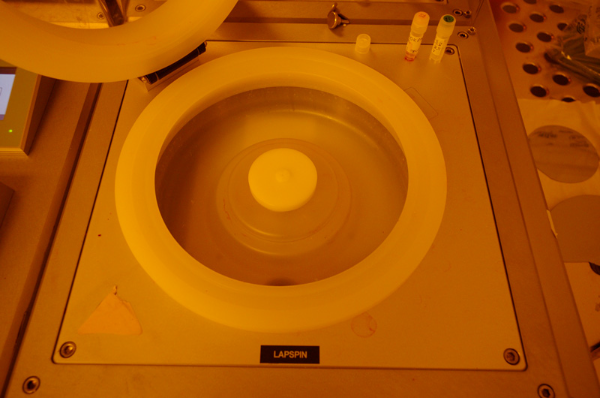

| Cover Options | 3 different sizes in low and high versions |
Module: Puddle developer
| Spin Speed Max | 10 000 RPM |
|---|---|
| Spin Acceleration | 1 – 7000 RPM/s |
| Bowl Material | PE |
| Cover Options | 1 developer line |
